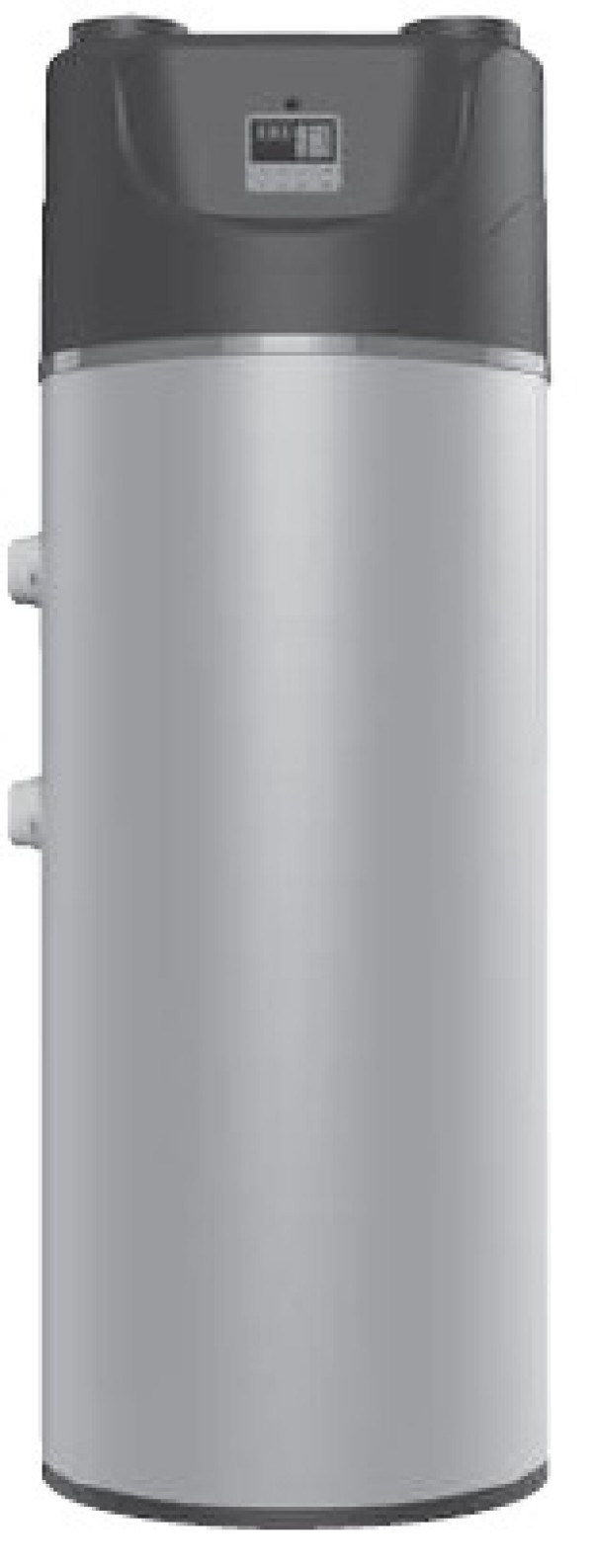

HP-E 260 ACS

  • Air-to-water heat pump for DHW production
  • 3 models available:
  • - HP 260 ACS model with only heat pump.
  • - HP 260 ACS S: heat pump with an auxiliary coil for solar panels back-up.
  • - HP 260 ACS SC: heat pump with two auxiliary coils for both boiler and solar panels back up.
  • Condenser externally wrapped to the boiler free from fouling and gas-water contamination.
  • Tank in steel with two layers vitrification.
  • Thermal insulation with injected polyurethane with high thickness.
  • External coating in ABS.
  • R134a refrigerant charger.
  • Built-in double-enamelled DHW tank (260 l capacity) with magnesium anode.
  • Electrical resistance provided as standard (1.5kW).
  • Legionella cycle management through parameters (up to 70°C).
  • Outdoor temperature probe for automatic insertion of the resistance with temperature not favorable to the heat pump.
  • Working range: -5°C to +32°C.
  • BOOSTER function (only in AUTO mode).
  • Remote ON/OFF for complete unit (Timer) and for electrical heater.
HP-E 260 ACS

Range documentation

Type Description Language
Technical-commercial sheet Download
Product Brochure/Depliant Download

Products

DHW FLOOR-STANDING HEAT PUMPS

20125646
HP-E 260 ACS
Type Language
Energy Label Download
Installer Manual English Download
User Manual Italian, French, English, German, Dutch, Polish Download
20125647
HP-E 260 ACS S
Type Language
Conformity declaration Download
Energy Label Download
Installer Manual English Download
User Manual Italian, French, English, German, Dutch, Polish Download
20125648
HP-E 260 ACS SC
Type Language
Conformity declaration Download
Energy Label Download
Installer Manual English Download
User Manual Italian, French, English, German, Dutch, Polish Download
