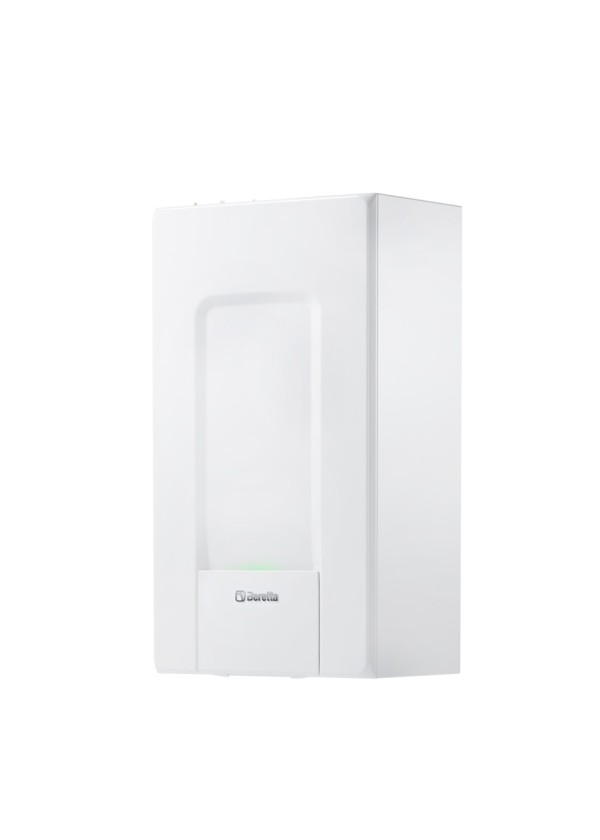

MYNUTE X P
- New condensing heat-exchanger in stainless steel with frontal access.
- Active Combustion Control via ACC System.
- High modulation (up to 1:8).
- Low NOx: Class 6 According to European Directive UNI EN 15502.
- Low energy modulating circulator (EEI ≤ 0.20) electronically adjustable with four management modes.
- Built-in non retun valve on flues allowing Mynute X (*) certification as C(10) appliance(**) for sharing chimneys under pressure.
- HYBRID READY boiler, that can be integrated in Beretta multi energy systems via REC 10H, available as an accessory.
- Flexibility of installation: indoor, outdoor (in partially protected places) and in-wall application.
- Click-fit flue connection: fast and safety.
- Hydraulic connections and outdoor probe available as optional.
- Frost protection as standard.
- IPX5D electrical protection.
- LPG operation selectable through display parameter. LPG transformation kit not necessary. Thanks to the ACC system, the gas commutation is via electronic setting
- Can be matched with BeSMART Control working as wifi thermostat in OTBus communication, allowing extensive top
- advantages.
- (*) All models except for 40C and 40R.
- (**) A C(10) appliance means that it is designed to become connected to a common duct system, that is designed to operate under the conditions where the static pressure in the common flue duct might exceed the static pressure in the common air duct.
Split flue exhaust system ø80 in plastic (PP) for condensing boilers
BeSMART Comfort controls for home comfort management
20134830
Flue adapter kit from Ø60/100 mm to Ø80+80 mm (air inlet swelling position)
20129765
Fixed split system kit Ø80 mm
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian, Bulgarian, Czech, Greek, English, Spanish, French, Hungarian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Serbian | Download |
| Installer + User Manual | Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch | Download |
20129769
Adaptor kit B23 from da Ø60/100 up to Ø80 mm
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch | Download |
20129768
Flue adapter kit from Ø60/100 mm to Ø80 mm (for type B23 installation) and air inlet
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch | Download |
Flue system with coaxial pipes ø60 / 100 in plastic (PP / PPu) for condensing boilers
20129177
Vertical collector Ø60/100 mm
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch | Download |
20129175
Ø60/100 mm horizontal flue terminal kit with 90° reduced concentric bend
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch | Download |
20129176
Ø60/100 mm telescopic horizontal flue terminal kit with 90° reduced concentric bend
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch | Download |
20129174
Vertical connection stub pipe kit Ø60/100 mm
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch, German | Download |
20129172
Ø60/100 mm - 90° reduced concentric bend kit
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch, German | Download |
SPECIFIC RECESSED ACCESSORIES
1103289
BOX for recessed IN-BOX installation
| Type | Language | |
|---|---|---|
| Installer Manual | Italian | Download |
HYDRAULIC ACCESSORIES
20132005
Wall-mounted hydraulic connections and gas tap kit for combi boilers
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian | Download |
20133386
Connection kit with gas cock (for heating only models)
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian | Download |
20133516
Wall-mounted hydraulic connections and heating, gas and DHW taps kit for combi boilers
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian | Download |
20133517
Connection kit with heating system and gas cocks (for heating only models)
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian | Download |
20134477
Connections kit for IN-BOX installation for instantaneous combi versions (C models)
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian | Download |
20156799
Combined MYNUTE X frost protection heating element kit (down to -15°C)
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian | Download |
20156800
KIT FROST PROTECTION ONLY HEATING
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian | Download |
ACCESSORIES FLUE DISCHARGE
1220559
Outdoor probe with connector
| Type | Language | |
|---|---|---|
| Installer Manual | Italian, English | Download |
COMPLETION ACCESSORIES
1220599
Immersion probe
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian, English, German, French, Spanish, Portuguese, Hungarian, Polish, Turkish, Romanian | Download |
| Installer + User Manual | Italian, English, French, German, Spanish, Portuguese, Hungarian, Polish, Turkish, Romanian | Download |
1220639
Limit thermostat for low temperature systems
20062614
Electronic board to control the supplementary pump and remote alarms
| Type | Language | |
|---|---|---|
| Installer Manual | Italian, Russian, English, French, German | Download |
| Installer + User Manual | Italian, English | Download |
20105959
ErP high head circulator
20035644
Solar diverter mixing valve kit (for combination boilers)
| Type | Language | |
|---|---|---|
| Installer Manual | Italian | Download |
20097192
Condensate pump
20132795
First zone management kit (MIX or DIR zone)
| Type | Language | |
|---|---|---|
| Installer Manual | Italian | Download |
20132796
Additional zone management kit (MIX or DIR zone)
| Type | Language | |
|---|---|---|
| Installer Manual | Italian | Download |
20135496
Kit polyphosphates dispenser
| Type | Language | |
|---|---|---|
| Installer + User Manual | Italian | Download |
BeSMART Comfort controls for home comfort management
20143659
BeSMART Comfort Controls
Products to match your system
Split flue exhaust system ø80 in plastic (PP) for condensing boilers
20137503
BEND 45° - Ø80
20137506
90° Ø80 mm bend
20137508
EXTENSION Ø80 - L=500 MM
20137509
EXTENSION Ø80 - L=1000 MM
20137511
EXTENSION Ø80 - L=2000 MM
20137517
HORIZONTAL THERMINAL Ø80
20137515
AIR SUCTION TERMINAL Ø80
20137532
SPACERS Ø80 (4 PCS)
Flue system with coaxial pipes ø60 / 100 in plastic (PP / PPu) for condensing boilers
20132043
EXTENSION Ø60/100 - L=500 MM
20132044
EXTENSION Ø60/100 - L=1000 MM
20132045
EXTENSION Ø60/100 - L=2000 MM
20132015
EXTENSION Ø60/100 - L=310 MM - WITH INSPECTION
20132012
BEND 45° - Ø60/100
20132040
BEND 45° - Ø60/100 (2 PCS)
20132013
BEND 90° - Ø60/100
20135584
SPACERS Ø100 (4 PCS)
Flue system with coaxial pipes ø80 / 125 in PP / aluminum for condensing boilers
20132050
PITCHED ROOF TILE
20135579
FLAT ROOF TILE
20164651
BEND 45° - Ø80/125
20164653
BEND 87° - Ø80/125
20164657
EXTENSION Ø80/125 - L=500 MM
20164659
EXTENSION Ø80/125 - L=1000 MM
20164660
EXTENSION Ø80/125 - L=2000 MM
20164655
BEND 87° - Ø80/125 - WITH INSPECTION
20164661
EXTENSION Ø80/125 - L=265 MM - WITH INSPECTION
20164669
VERTICAL THERMINAL Ø80/125
20164673
HORIZONTAL THERMINAL Ø80/125
20164665
SPACERS Ø125
20164666
ADAPTER Ø60/100 - Ø80/125
PPs ø50 plastic ducting system for condensing boilers
20144194
ADAPTER Ø60-Ø50
PP ø60 (class H1) plastic ducting system for condensing boilers
20145892
CHIMNEY CONNECTION KIT Ø80-60 WITH BEND 90° - Ø60
20145877
BEND 45° - Ø60 - FOR INTUBATION
20145876
BEND 90° - Ø60 - FOR INTUBATION
20145879
EXTENSION Ø60 - L=500 MM
20145882
EXTENSION Ø60 - L=1000 MM
20145883
EXTENSION Ø60 - L=2000 MM
20145884
VERTICAL TERMINAL Ø60/100 - WITH CHIMNEY COVER
20145886
SPACERS Ø60 (3 PCS)
20145890
HOSE CLAMP Ø60 (5 PCS)
20145894
T-CONNECTION Ø60 WITH CONDENSATE TRAP
20145897
ADAPTER Ø80-60
PP ø80 plastic ducting system for condensing boilers
20145888
CHIMNEY SUPPORT SHELF
20145889
FLUE COVER PANEL KIT
20046782
DISCHARGE SIPHON
20132504
T CONNECTION Ø80, WITH SUPPORT BRACKET
20132505
SPACERS Ø80
20132506
EXTENSION Ø80 - L=260 MM - WITH INSPECTION
20132508
CHIMNEY COVER Ø80
20132511
FLEXIBLE-FLEXIBLE JUNCTION Ø80
20132512
FLEXIBLE-RIGID JUNCTION Ø80
20163018
T CONNECTION Ø80
20163019
CONDENSATE DISCHARGE PLUG Ø80
20164585
ADAPTER Ø60-Ø80
20132509
EXTENSION Ø80 - FLEXIBLE - WITH SPACERS
20132510
RIGID-FLEXIBLE JUNCTION Ø80
PP ø80 (class H1) plastic ducting system for condensing boilers
20164570
BEND 45° - Ø80
20164572
BEND 90° - Ø80
20164574
EXTENSION Ø80 - L=500 MM
20164577
EXTENSION Ø80 - L=1000 MM
20164578
EXTENSION Ø80 - L=2000 MM
20132520
CHIMNEY CONNECTION KIT Ø80/125
