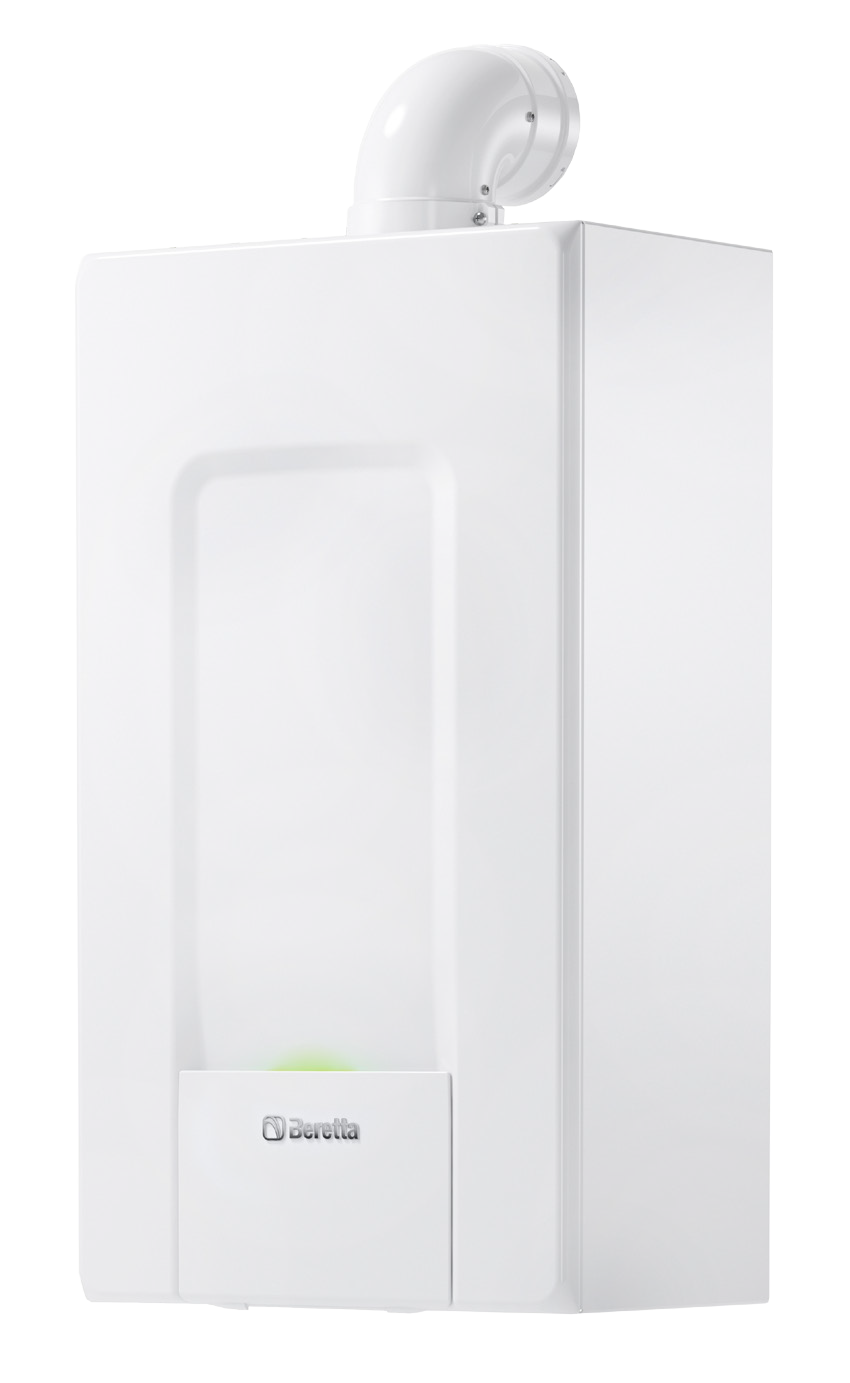

Beretta present MYNUTE X, a new wide range of condensing wall-hung boilers with many distinguishing innovations, from the new condensing heat-exchanger in stainless steel, to the ACC combustion up to the new electronic interface.
The range covers all comfort needs for residential application with its 7 models, available in different outputs from 20 to 40 kW, as â€œcombinationâ€ and â€œheating onlyâ€ versions.
High efficiency, flexibility of installation, low consumption and user-friendliness make Mynute X the winning choice, both for new installations and as a replacement of old boilers.

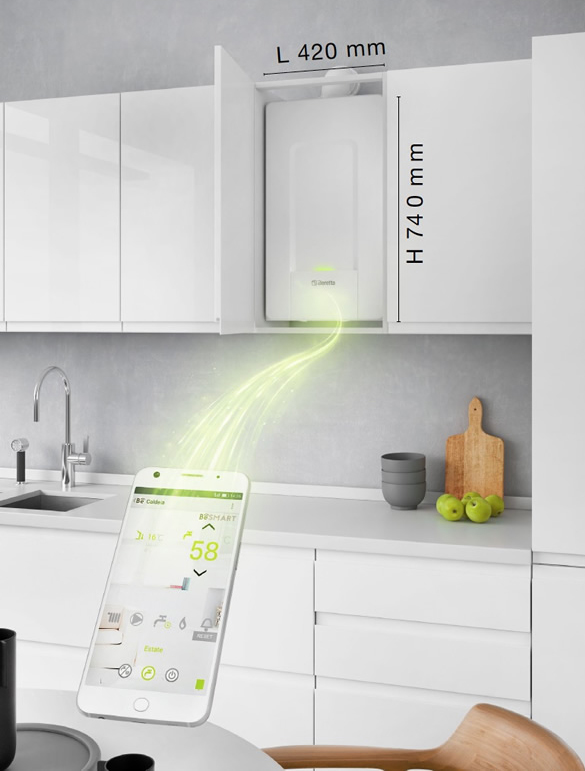

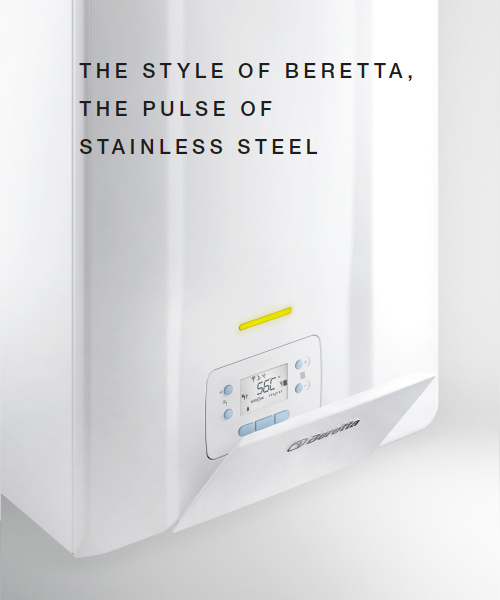

The new design of MYNUTE X highlights Berettaâ€™s tradition of excellence and expertise, proven by over 40 years of experience in the heating industry. In family line with the style of Beretta last generation products, MYNUTE X blends easily into any setting, thank also to the compact dimensions and flexibility of installation.
CO boiler level constantly monitored and calibrated for maximum safety
Indoor, outdoor and recessed in-box application
User-friendly interface with LCD backlit display and 7 push buttons
Casing removal is no longer required to make the electrical connections and calibrations
Auto-adaptability of the boiler to different types and compositions of gas - NO mechanical calibrations
Ultra low consumptios, thanks to the new primary heat exchanger, the modulating circulator and the ACC combustion
(*) All models except for 40C and 40R.
(**) A C(10) appliance means that it is designed to become connected to a common duct system, that is designed to operate under the conditions where the static pressure in the common flue duct might exceed the static pressure in the common air duct.
The innovative primary heat exchanger in stainless steel, made of a coiled smooth tube with a large section, ensures optimized efficiency of the combustion and cleanness over time.
The stainless steel quality AISI 304 L provides high resistance to corrosion deriving from acid condensate. The large section of the tube and its geometry as a unique coil ensure a constant flow and prevent intrinsically from clogging.
The frontal access to heat exchanger enables ease of maintenance and cleaning of the combustion chamber.
MYNUTE X features the new â€œhybrid
readyâ€ technology by Beretta, conceived
to integrate and manage different energy
Provided with the new communication BUS, MYNUTE X can manage a hybrid system with the heat pump HYDRONIC UNIT LE B through the REC 10H, the â€œbrainâ€ of the system, available as an accessory (while disabling the boiler interface).
The Energy Manager REC 10H constantly controls the hybrid system, to always offer the best comfort in an efficient and effective way.

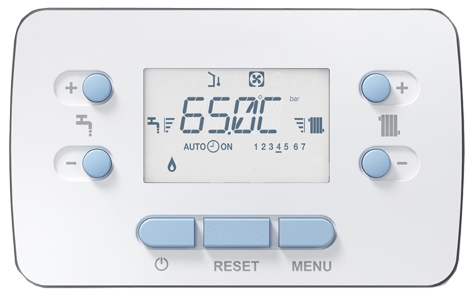

The control panel is one of the distinguishing and innovative elements of MYNUTE X product line. MYNUTE X functions can be accessed through a modern backlit LCD display, which communicates with the user through intuitive icons. Thanks to seven push buttons with clear silkscreen, it is possible to easily access and set all MYNUTE X parametres.
MYNUTE X â€œGREEN LEDâ€: A small LED light bar shows the boilerâ€™s operation status, reflecting on the casing a green light, if the boiler is operating regularly.

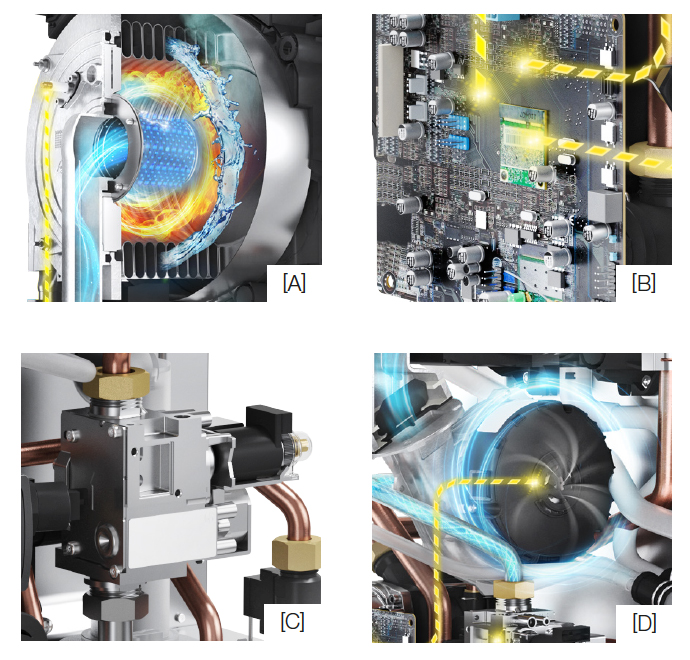

The ACC system, designed and developed by Beretta, allows to offer best-in-class functionality, efficiency and low emissions in all circumstances.
Using a flame ionisation current detection sensor, that allows the electronics to continuously modulate the quantity of injected fuel, the system keeps the air/gas mix constant at the optimal values in the whole power output modulation field (constant CO2 value).
Thanks to the sophisticated ACC system, combustion self-adjusts, thus eliminating the need of any calibration and allowing the boiler to operate with several gas compositions. Special attention is paid to CO emissions, through a self-diagnosis that operates on the burner before the threshold of emission permitted by the regulations is exceeded.
