Fully designed, developed and industrialized by Beretta, complete with all flue options, hydraulic and safety accessories, POWER MAX is the ideal choice for central heating systems of large domestic properties and commercial buildings, like hotels, sports centres, schools, office buildings, factories, etc.
Thanks to an almost infinite number
of possible configurations, ranging
from a simple stand-alone to cascade
applications of up to 1120kW,
POWER MAX is Beretta’s winning
solution both for new buildings and
renovations, from energy retrofitting
to the replacement of old boiler
systems.
The ease of mounting and the
maximum flexibility of installation,
combined with high efficiency
and low emissions, make this
product stand out in the category
of commercial and light commercial
appliances.
All the components of the previous range have been redesigned: the heat exchanger works with surface temperatures decreased by 18% to reduce thermal shock and increase the lifespan; polluting emissions have been reduced below the most stringent limits (Class 6 NOx according to UNI EN 15502); the system control is 10 times faster than the previous one. A new, wider range of accessories is also available as standard.
The modulation of a POWER MAX cascade system is
considerably higher than that of a single boiler. In fact,
through the control of the number of heat modules in
operation, the system optimises the power delivered
according to the actual requirements.
In the middle seasons - spring and autumn - when the
demand is lower because of the favourable climatic
conditions, or in buildings with very variable needs
depending on the presences (Hotels and Restaurants),
the cascade control will activate only the boilers required,
ensuring the necessary power to meet the actual heat
needs.
POWER MAX cascade systems are much more reliable than monobloc boilers. In case of a unit downtime, the rest of the system is not involved and continues to operate to meet the heat requirements.
The modularity of POWER MAX systems is the right solution in case of replacement of central heating systems with difficult access to the plant room: each unit of the cascade can be easily transported and has reduced dimensions and weight.
The high efficiency of the system, together with the condensing technology, make POWER MAX system the ideal solution for energy retrofits. There is no need to wait for the existing boiler to break down, as the cost of replacement pays for itself in a few years thanks to the saving on gas supply.
Heat modules POWER MAX have reached the best NOx emission class (Class 6 according to UNI EN 15502) thanks to the total premix burner with micro flame. Moreover, the cascade system manages the ignition of the burners, activating only those necessary for the current heat requirements, thus reducing CO2 emissions..
The POWER MAX range is designed for an easy maintenance with direct frontal access to all the internal components. Maintenance of the single module of the cascade system can be carried out even if the other modules are running.
The cascade POWER MAX system is designed to take as little space as possible, so as to be suitable for both condominiums and commercial buildings. The compact size of the single module (1000x600x435 mm) and an innovative frame, able to contain more than 1 MW in 2.6 m2, allow installation even in small plant rooms.

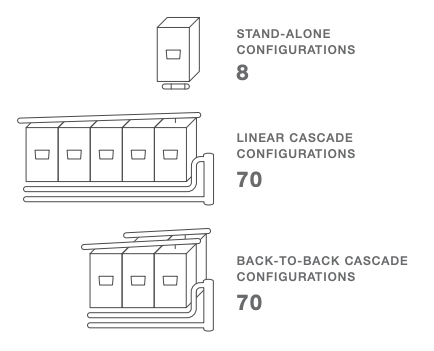

The POWER MAX system is suitable for plant rooms where space is limited: thanks to the wide range of accessory kits, POWER MAX is available for standalone wall-mounted application, or for cascade application, with linear or back to back configurations. It is also possible to choose output and configuration according to the requirements and the space available.
Cascade heat modules POWER MAX can be easily installed thanks to the large number of accessory kits available. Every single module can be transported separately to the plant room, easily passing through any door. The installer will only have to assemble modules and kits with simple, easy and fast operations.

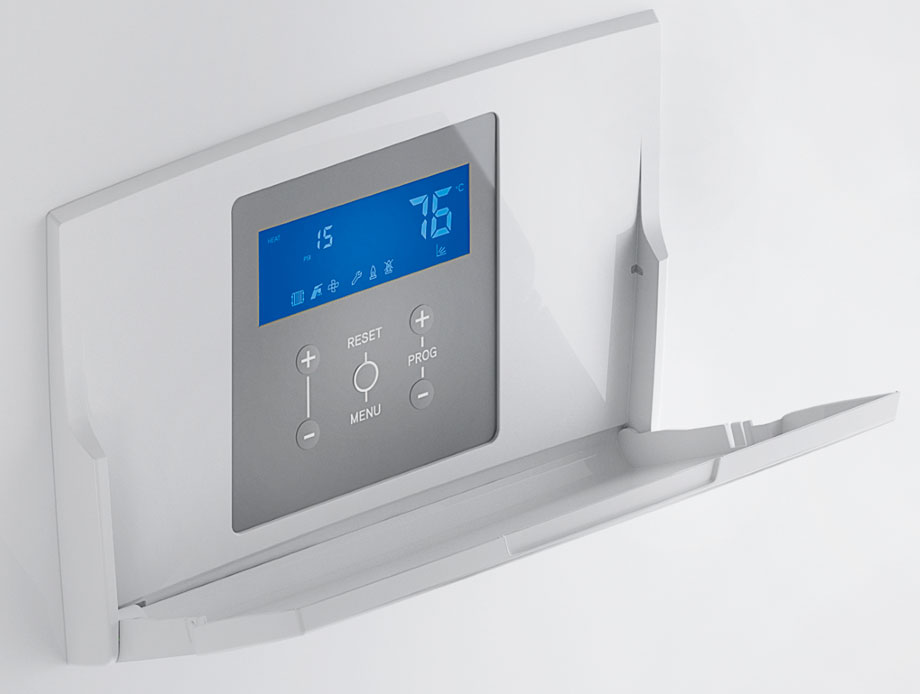

POWER MAX boilers feature an electronic board able to manage complex systems thanks to the precision of calculation programs and to the processing speed. Thanks to the onboard electronics, with the addition of the accessory kit for flue and hydraulics, it is possible to manage up to 10 modules in cascade, thus reaching a very high modulation ratio.
