POWER EVO-X

BERETTA PRESENTS POWER EVO-X, THE NEW MODULAR WALL-HUNG CONDENSING BOILER, WHICH IS THE IDEAL SOLUTION FOR THE REPLACEMENT OF OLD GENERATORS IN SMALLER PLANT ROOMS.

The range consists of 4 condensing models from 35 to 70 kW, with the possibility of stand-alone and cascade installation up to a maximum of 4 thermal modules, both in in-line and back-to-back configurations, reaching up to 280 kW of power.

POWER EVO-X, thanks to its compactness and low weight, is the ideal solution in all situations where limited space is a critical issue when selecting a generator.

The range is suitable for indoor or partially protected installation (IPX5D) and is equipped as standard with low-consumption modulating circulators. Beretta has developed a configuration software to facilitate the designer in the process of selecting accessories and identifying the best solution in response to the thermal and plant engineering requirements of the plant.

TECHNICAL FEATURES

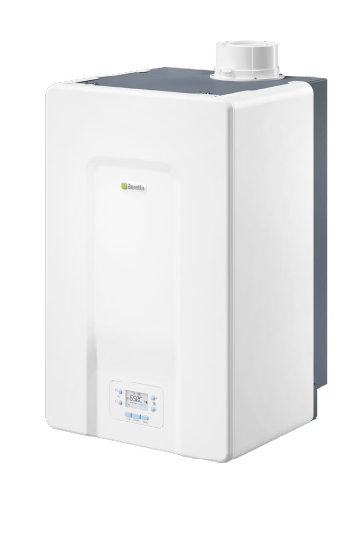

STAND ALONE CONFIGURATION

• Heating only
• Clapet as standard
• Modulation ratio up to 1:8
• IPX5D protection degree as standard
• Concentric flues as standard
• Up to 3 zones management by means of specific accessories

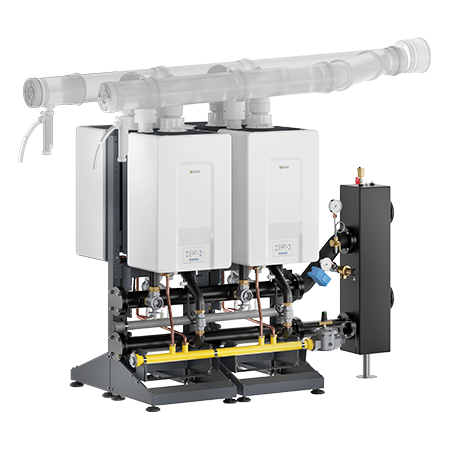

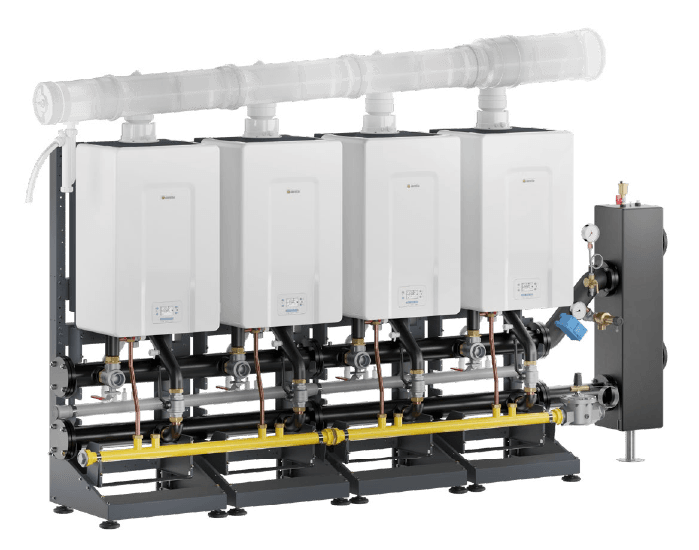

CASCADE CONFIGURATION

• LINEAR or BACK-TO-BACK configuration
• Modulation ratio up to 1:32
• System height < 2 metres in all configurations
• Possibility of combining either with hydraulic separator or with plate heat exchanger for the separation between primary and secondary circuit
• Wide range of accessories, both hydraulic and flue gas exhaust

ONE RANGE,
28 CONFIGURATIONS

With the POWER EVO-X range, consisting of 4 models, 28 configurations can be realised, to meet the most varied space requirements of the plant room. Beretta is thus expanding its wall-hung range in the professional segment, introducing a range that ensures installation flexibility while maximising the compactness of the system.

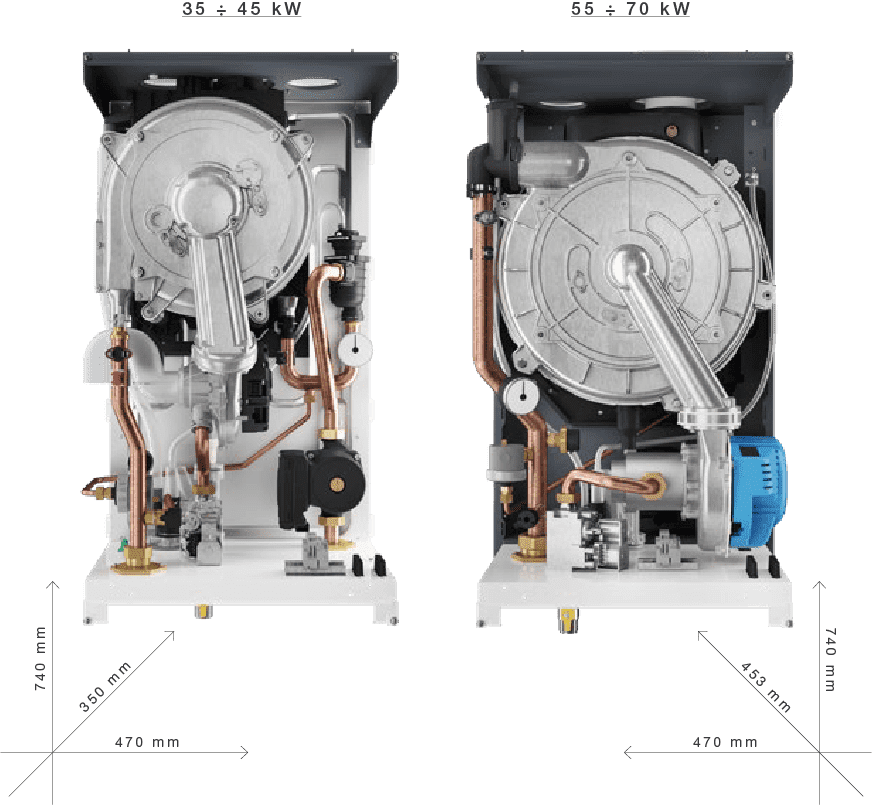

EFFICIENCY IN A COMPACT LAYOUT

• Room-sealed configuration as standard
• Premixed burner with low polluting emissions
• New stainless steel heat exchanger with low water content
• Low consumption hydraulic circulator as standard on each model
• Compact and lightweight structure
• Complete front accessibility for maintenance operations

ELECTRONIC CONTROL AND DISPLAY

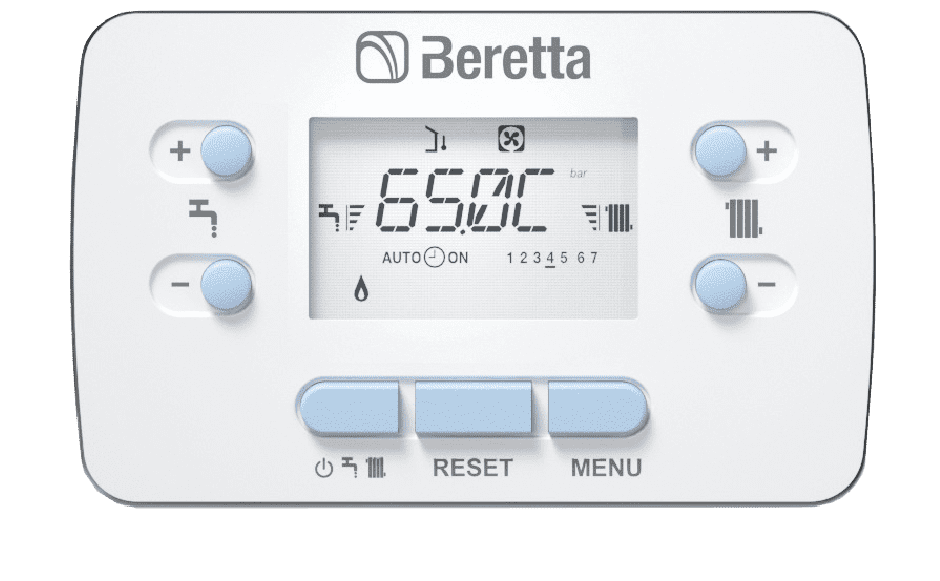

BOILER CONTROL

• Simple and intuitive backlit LCD display which shows the main operating information
• Ease of setting thanks to the keys with symbols dedicated to the end-user functions
• Clock function weekly programmer integrated into the display

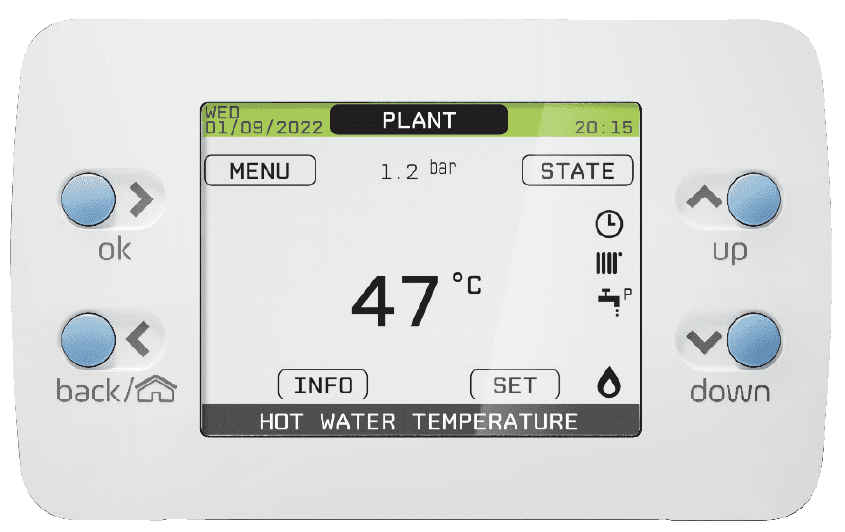

SYSTEM REMOTE CONTROL
WITH POWER EVO-X IN CASCADE

• Possibility to manage, view and parametrize the whole heating system
• Management of up to 4 boilers in cascade with different operating modes
• Display of the operating status of the system and of the individual generators of the system
• Management of up to 6 direct / mixed zones and DHW production with an external cylinder
• Possibility to manage a solar thermal system

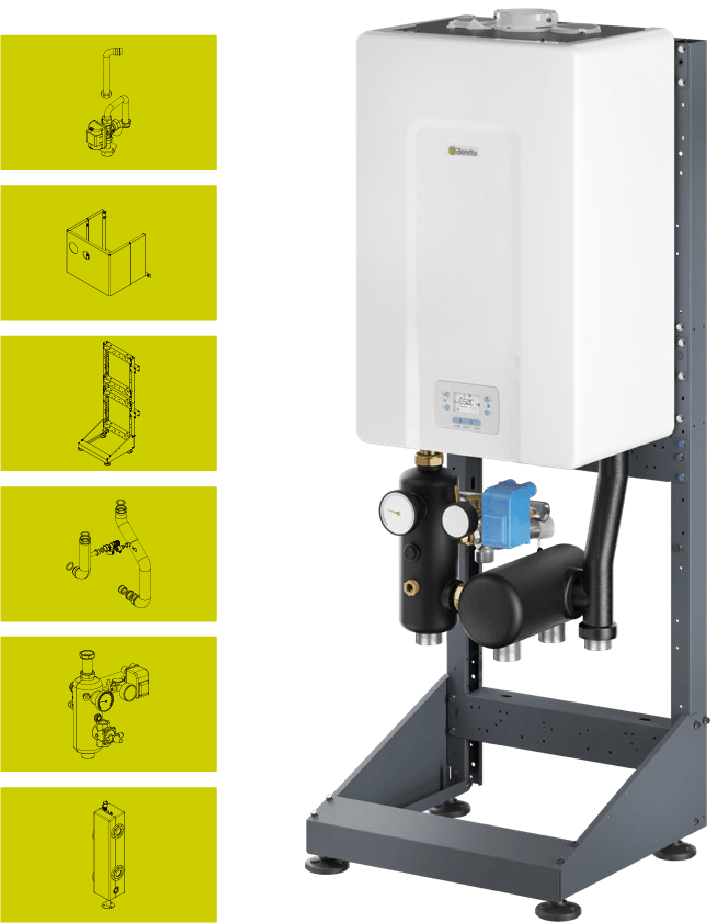

A WIDE RANGE OF ACCESSORIES
FOR ANY CONFIGURATIONS

POWER EVO-X is completed with a wide range of accessories able to adapt to the needs for each type of system. The accessories have been specially designed to maximize the flexibility of the system and to obtain the ideal solution for every installation requirement, both in stand alone and in cascade installation.

• A safety kit is also available for all models, which is completed with specific shut-off and safety valves, both to be selected according to the boiler model
• Possibility of installation either with hydraulic separator or plate heat exchanger both in single installation and in cascade, thanks to the specifically designed accessories
• Flue collectors, hydraulic manifolds and connections specifically designed for cascade installation in linear or back-to-back configuration
• A series of useful accessory kits are also available for managing the heating zones, which allow the management of up to 6 direct or mixed zones when combined with the use of the remote control.

HYDROGEN IS THE SUSTAINABLE ENERGY SOURCE OF THE FUTURE

• Available in huge quantities
• Produced with low-impact, sustainable methods from renewable sources such as wind, photovoltaic and biomass
• Reduction of emissions
• A real opportunity for change - to begin the decarbonisation process, fight global climate change and improve the quality of air and life
