BERETTA PRESENTS MYNUTE BOILER X 25B, THE CONDENSING BOILER EQUIPPED WITH 30-LITRE DHW BI-TANK, TO OFFER EFFICIENCY AND ENERGY SAVINGS.

Compared to previous Beretta ranges with DHW tank, MYNUTE BOILER X is more compact and efficient. Instead of a single boiler, the boiler features a 30-litre DHW bi tank which, in addition to saving space thanks to the new layout, is more efficient in DHW producing.

MYNUTE BOILER X offers uncompromising comfort even in the heating profile, being equipped with an efficient pneumatic combustion stainless steel exchanger, in addition to the wide 1:8 modulation. The boiler, in addition to the very low NOx emissions, which today place it in class 6 according to European standards, was created with an eye to the future, being already suitable to operate with blends of natural gas and hydrogen up to 20%, thus contributing to further reducing the environmental impact of condensing boilers in the coming years.

Ease of use is combined with a pleasant and essential aesthetic, in line with the new generation Beretta boilers, which allows the product to be easily integrated into different residential contexts.

30L STAINLESS STEEL BI-TANK

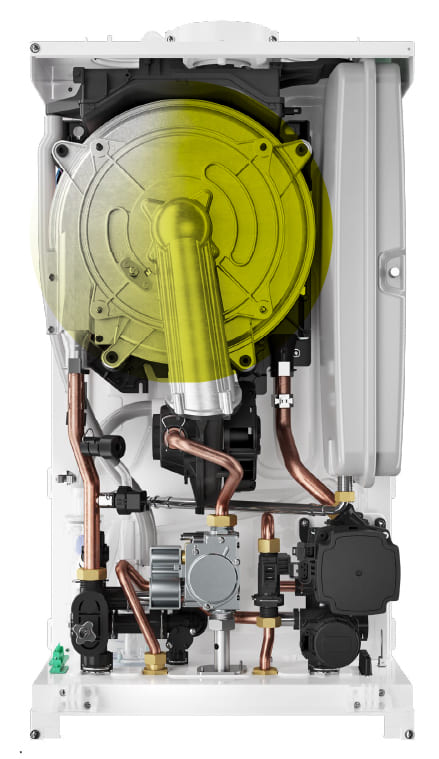

STAINLESS STEEL HEAT EXCHANGER

HOT WATER AT STABLE TEMPERATURE

LOW NOX EMISSIONS (CLASS 6)

EASY INSTALLATION IN TWO STEPS

COMPACT DIMENSIONS

SIMPLIFIED MAINTENANCE WITH FRONT ACCESS

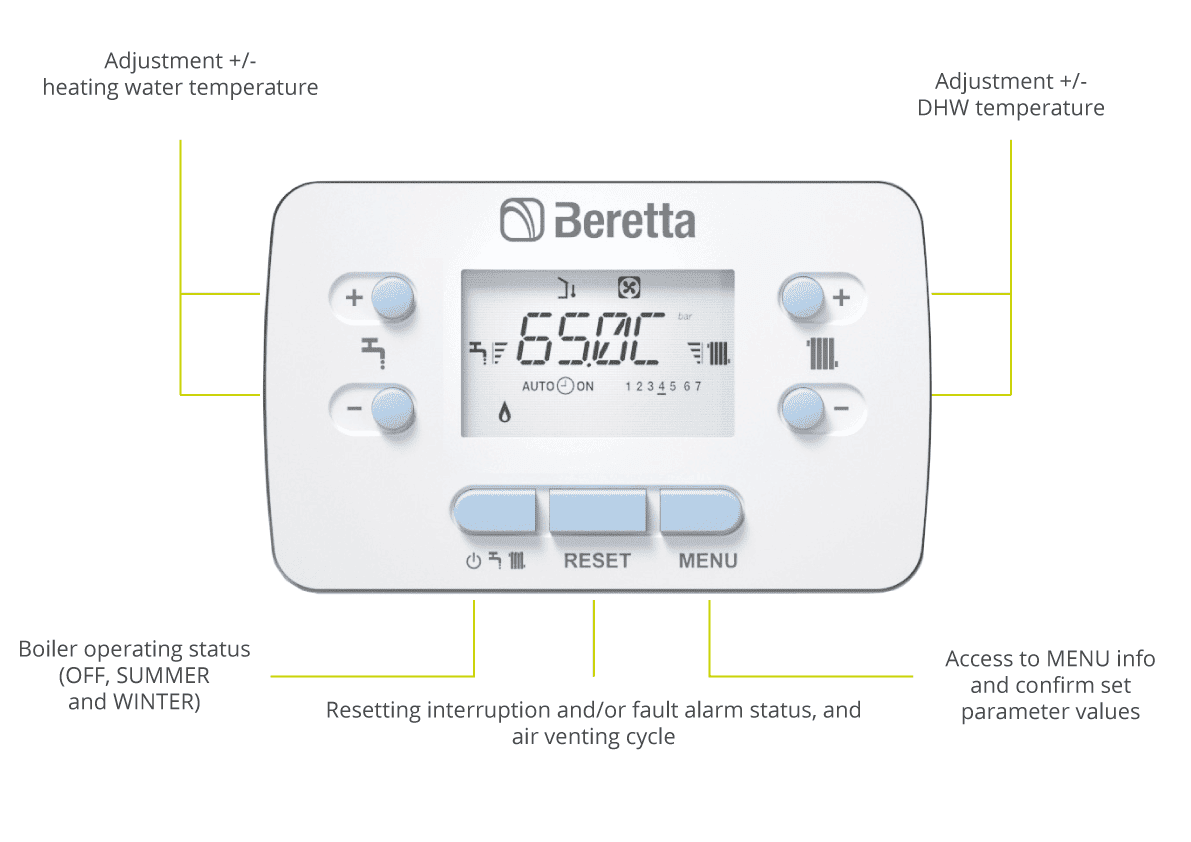

MODERN DIGITAL AND INTUITIVE INTERFACE

INNOVATION AND EFFICIENCY

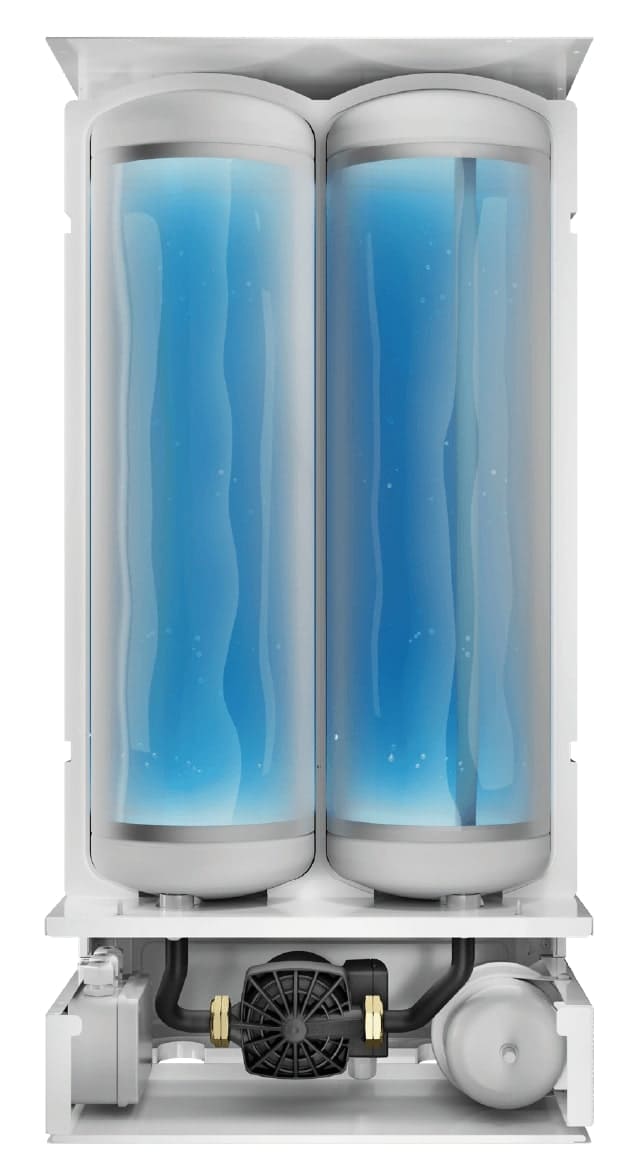

NEW 30 L DHW BI-TANK WITH ADVANCED ELECTRONICS
  • The DHW bi-tank (also called dosseret), reaches the same performance as the previous 45-litre Beretta Mynute Boiler Green model, with more compact dimensions;
  • Possibility to manage the boiler recharge frequency of the DHW tank through a parameter in the electronics:
    • Comfort: for high frequent filling cycles, if withdrawals are frequent or the water volume requirement is high;
    • Eco: for a reduced number of boiler filling cycles and consequently higher energy savings;
  • Expansion vessel of the DHW tank;
  • DHW bi-tank is supplied separately from the boiler.
CONDENSING BOILER TO BE COMBINED WITH THE BI-TANK
  • New flue gas flange with quicktightening safety collar;
  • Low NOx emissions: class 6 (UNI EN 15502);
  • Energy efficiency: 93%;
  • 1 : 8 Modulation;
  • 8 liter expansion vessel;
  • Low consumption modulating circulator (EEI ≤ 0,20), with 6 meters head;
  • Silent operation;
  • IPX5D electrical protection degree;
  • Hydraulic group with DIN connections;
  • Can be matched with Hi, Comfort T100 for remote comfort management;
  • Boiler is supplied separately from the DHW tank.
