CIAO, ONE OF THE BEST-SELLING WALL-HUNG BOILERS IN THE BERETTA PORTFOLIO EVER, HAS NOW BEEN COMPLETELY REDESIGNED, RESULTING IN A NEW CONDENSING RANGE WITH MANY INNOVATIVE FEATURES AND ADVANTAGES: CIAO X

The new Beretta range retains the distinguishing features of its predecessor in terms of reliability and user-friendliness, while adding many important and innovative ones: from the new primary heat-exchanger in stainless steel, to the new touchpad interface up to the hydraulic DIN connections.

With CIAO X Beretta enhances the research of higher comfort and innovation in the respect of the environment, which has always represented one of the assets of the brand, since its origins. This renewed energy consciousness translates into high efficiency, low consumption and a high modulation ratio (1:8), that combined with the flexibility of installation, compact size and low weight, allow to place CIAO X at the top of its category.

But what’s more, CIAO X thinks ahead for future generations. The new range can already process a mixture of hydrogen up to 20%, the sustainable energy source that will be the real ecological turning point in the coming years.

EVERYWHERE CIAO X

CIAO X features a modern and linear design, which blends easily into any setting.
The compact dimensions and low weight allow the product to be easily installed anywhere, not only inside the house, but also recessed in box or outdoors, in a partially protected space. CIAO X is therefore also ideal for the replacement of old boilers, both with DIN or with Beretta connection sequence, thanks to the availability of accessory kits that simplify the conversion.
A wide range of accessories complete the offer of CIAO X: flue kit, compact water filters (softener and magnetic) and hydraulic connections cover, making installation easier and harmonising integration in both indoor and outdoor environments.

CONTROL YOUR COMFORT BY A TOUCH

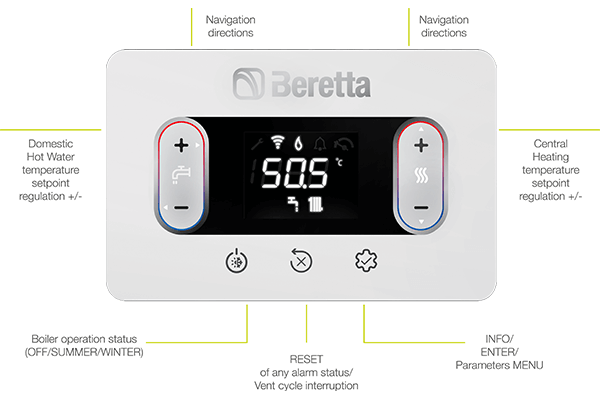

One of the main distinguishing characteristics of the new CIAO X is the digital touchpad interface, combining innovative design and features with user-friendliness.

By a simple touch on 7 points of the panel, it is possible to access in an intuitive way all the settings and parameters of the boiler and the system.

Each touch activates a buzzer, that generates an acoustic feedback as a confirmation of the operation.

The LCD display communicates with the user and installer through icons, without using texts, so as to allow an immediate understanding of the displayed function.

TECHNOLOGY AND ENERGY-SAVING HAND-IN-HAND

• High modulation range: 1:8 premix modulation ratio
• Low nox: class 6 (EN 15502)
• Built-in thermoregulation with external probe available as an accessory
• Range rated certification to adapt the power of the boiler to the real thermal requests of the installation
• IPX5D electrical protection
• New flue flange featuring fast and safe quick-fastening connection and integrated flues analysis inlet
• Low energy circulator (EEI ≤ 0,20): 6 m residual head
• Hydraulic connections cover and a wide range of accessories available as optional
• Compatible with the offer of Beretta smart thermostats, both as on/off or as wi-fi thermostats in otbus communication

NEW FUNCTIONS FOR A HIGHER DHW COMFORT

In the combi models, the high-performance plate heat exchanger, developed by Beretta, connected to the primary circuit of the hot water, allows to warm up the DHW in an instantaneous way, without the need of any external tank.

The new optimized heat-exchanger has been conceived to obtain the best performance and maximum comfort for the end-user in terms of temperature stability and reduced waiting times. These pluses, which place the product at the top of its category, translate finally into respect for the environment, saving water and energy.

• PRE-HEATING AND ITS EVOLUTION INTO SMART PRE-HEATING functions have been conceived in order to further save water and gas consumption. They allow, in fact, to keep warm the water inside the new high efficiency plate heat exchanger, produced in our plants, to reduce waiting time.
• TOUCH & GO function allows to activate an instantaneous pre-heating, only for one specific request.
• Other special functions like DHW DELAY, NO-OSCILLATION PERFORMANCE, SMART FAN allow to upgrade the boiler performance in particularly difficult operation conditions like e.g. very low or very high inlet water temperature or very low water flow.

NEW CONDENSING HEAT EXCHANGER

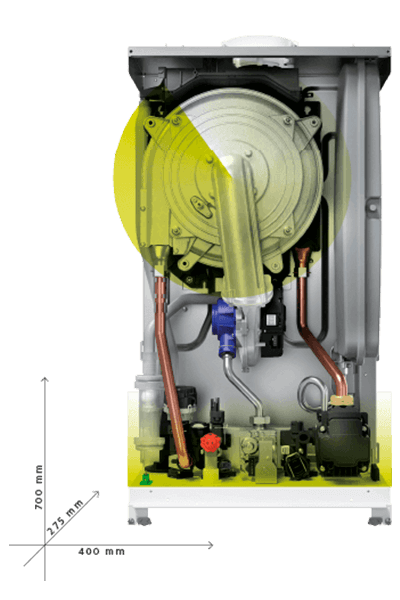

CIAO X features a high efficiency condensing heat exchanger in stainless steel, compact and robust. It is made of a coiled smooth tube with a large section, ensuring optimized efficiency of the combustion and cleanness over time. The stainless-steel quality provides high resistance to corrosion, deriving from acid condensate. The large section of the tube and its geometry as a unique coil ensure a constant flow and prevent intrinsically from clogging. The frontal access to heat exchanger enables ease of maintenance and cleaning of the combustion chamber

LOW NOISE OPERATION

This feature makes CIAO X ideal for installation indoor, even for replacement in a kitchen.

HYDROGEN, THE SUSTAINABLE ENERGY SOURCE OF THE FUTURE

THE CYCLE OF HYDROGEN USE

Hydrogen is a safe and clean gas, available in huge quantities in nature. Mixed with natural gas up to a ratio of 20 to 80%, hydrogen allows to generate heat and hot water, helping to minimise polluting emissions. From the combustion of oxygen and hydrogen, and in the amount of the latter, water vapour is generated: in this way hydrogen turns back to water, its most common source, and reintroduced into nature.

• Availability in huge quantities
• Production by low-impact and sustainable methods from renewable sources, such as wind, photovoltaics, and biomass energy
• Reduction of pollutant emissions in the percentage of its use
• Real opportunity for change to start the decarbonisation process, fight global climate change, and improve the quality of air and life.
